引用標準/Reference standard
|
IEC 61071 60068 60384
|
|
工作溫度范圍/Operating temperature range
|
-40~85℃
|
|
容量范圍/Capacitance
|
5.0~100μF
|
|
額定電壓/ Rated Voltage
|
400,800,1000Vdc (250,400,500Vac)
|
|
容量偏差/ Tolerance
|
±5%, ±10%
|
|
極間耐電壓/ Test voltage between terminals
|
1.6Un 10s 25±5℃
|
|
極殼耐電壓 /Test voltage between terminals and case
|
3000V 50Hz 60S, 25±5℃
|
|
損耗角正切/Dissipation factor
|
tgδ≤1×10-3 at 25±5℃ , 1KHz
|
|
絕緣電阻/Insulation resistance
|
C*IR≥5000S, at 100VDC,25±5℃,60S
|
|

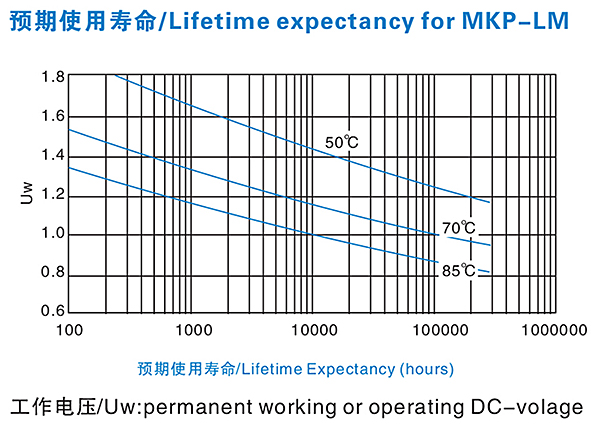

預期壽命/Life expectancy
|
100000h at Un and 70℃
|
