DTH

Current Position： DTH

DMS

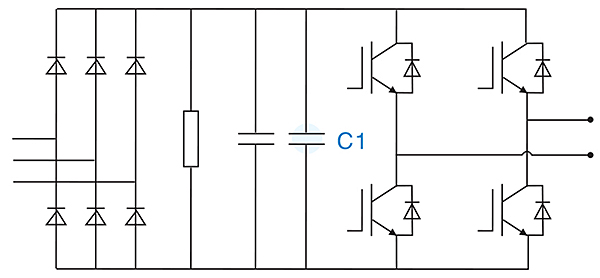

Widely used in H-HV snubber, high voltage application.

Dielectric: Polypropylene film

Construction: Metalized film internal series connection

Coating: Polyester tape wrapping with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut leads, threaded insert CP cu chip high voltage

Low losses, high stability

Self healing

Reference standards	IEC 61071 61881
工作溫度范圍Operating temperature range	-40~85℃
容量范圍Capacitance	0.0015~0.47μF
額定電壓 Rated Voltage	4000~15000VDC
容量偏差 Tolerance	±5%, ±10%
極間耐電壓 Test voltage between terminals	1.5Ur(DC) 10s 25±5℃
極殼耐電壓 Test voltage between terminals and case	3000V 50Hz 60S, 25±5℃
損耗角正切Dissipation factor	tgδ≤8×10^-4 at 25±5℃ , 1KHz
絕緣電阻Insulation resistance	C*IR≥30000S, at 100VDC,25±5℃,60S

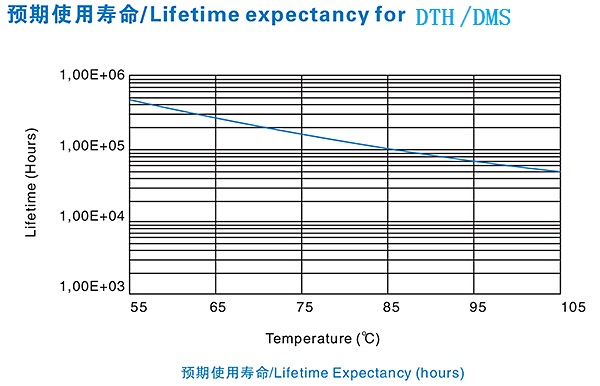

預(yù)期壽命Life expectancy	100000h at Ur and 70℃
