引用標準/Reference standard
|
IEC 61071, 60068 GB/T14747
|
|
工作溫度范圍/Operating temperature range
|
-40~85℃
|
|
容量范圍/Capacitance
|
6.8-820μF
|
|
額定電壓 /Rated Voltage
|
300~1400Vac
|
|
容量偏差 /Tolerance
|
±5%, ±10%
|
|
極間耐電壓 /Test voltage between terminals
|
1.5Un 10s 25±5℃
|
|
極殼耐電壓/ Test voltage between terminals and case
|
3000V 50Hz 60S, 25±5℃
|
|
損耗角正切/Dissipation factor
|
tgδ≤2×10-3 at 25±5℃ , 100Hz
|
|
絕緣電阻/Insulation resistance
|
Rs≥5000S, at 100VDC,25±5℃,60S
|
|

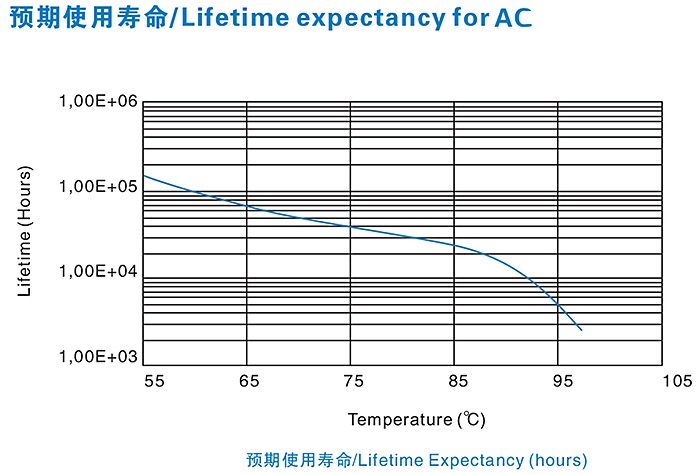

預期壽命/Life expextancy
|
100000h at Un and 70℃，30000h at Urms
|
