DHC

Current Position： DHC

DHC

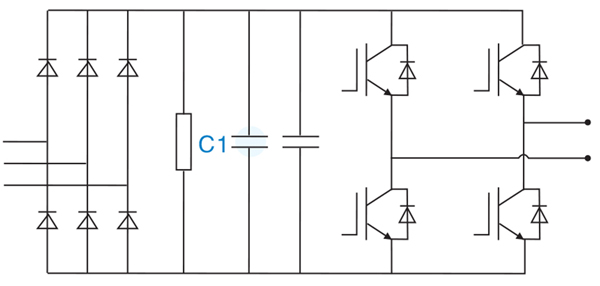

Widely used in electromagnetic magnetic induction

Heating equipment Power half-bridge,full bridge series and

Parallel filter circuit.

Dielectric: Polypropylene film

Construction: Extended double side metalized carrier film

with internal series connection and metalized film

Coating: Resistant plastic case with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Tinned copper lugs

High pulse current, high dv/dt

Low ESL and ESR

Self healing

技術(shù)性能/Specifications

引用標(biāo)準(zhǔn)/Reference standards	IEC 61071 60068
工作溫度范圍/Operating temperature range	-40~85℃
容量范圍/Capacitance	10~50μF
額定電壓 /Rated Voltage	800-1200V.DC
容量偏差 /Tolerance	±10%
極間耐電壓 /Test voltage between terminals	1.5Ur(DC) 10s 25±5℃
極殼耐電壓 /Test voltage between terminals and case	2000V 50Hz 60S, 25±5℃
損耗角正切/Dissipation factor	tgδ≤6×10^-4 at 25±5℃ , 1KHz
絕緣電阻/Insulation resistance	C*IR≥30000S, at 100VDC,25±5℃,60S

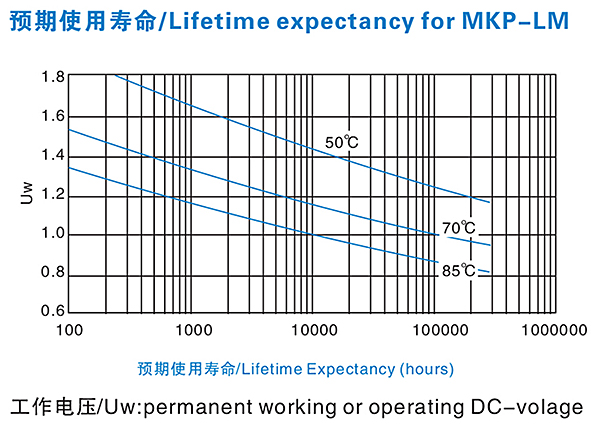

預(yù)期壽命/Life expectancy	100000h at Ur and 70℃
