DHG

Current Position： DHG

DHG

Metallized polypropylene film winding without a sense of style, special gold spray, aluminum shell or stainless steel enclosure, epoxy resin, copper nut, bolt copper leads.

The advantages of small size, large capacity, good current capacity, low temperature rise, low stray inductance, long life, easy installation and so on.

Instead of aluminum electrolytic capacitors, which are widely used in wind power, photovoltaic solar energy, SVG, frequency converter, flexible AC and DC output inverter system for DC filter and support.

Performance

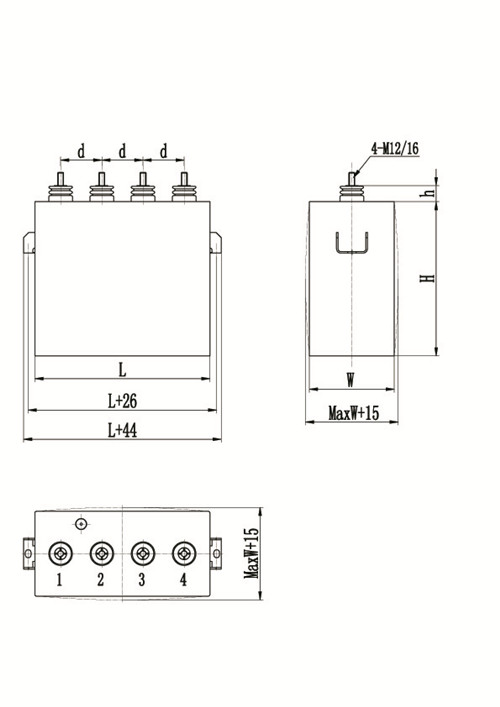

Shape and size

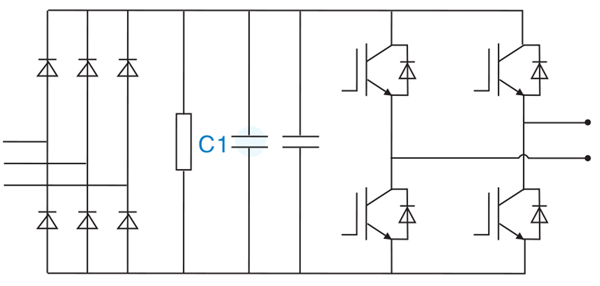

Typical circuit diagram

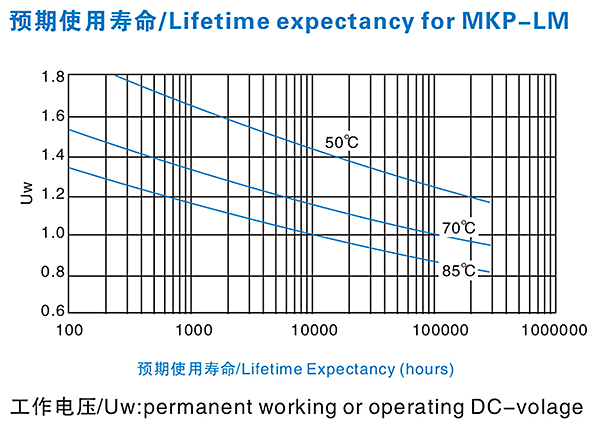

Waveforms

主要電氣參數/Electrical characteristics

容量范圍Cn /Capacitance range Cn	100μF to 15000μF
容量偏差/Tolerance on Cn	-10％~+10%；-5％~+5%
額定電壓Un/ DC voltage range Un	DC 300V to 6KV
損耗角正切值 tanδ/ Loss factor tanδ	<0.002 (At 50Hz, 20℃)
電感ESL/ Self-inductance ESL	<100nH，<50 nH on request
使用環境溫度/ Ambient temperature	-40℃~+65℃
填充劑/Impregnation	油或樹脂/oil or resin
極間耐壓/ Test voltage between terminals	1.5Un
預期壽命/Lifetime-expectancy	100,000 hours
參考標準/ Standard reference	IEC 61071, IEC 61881
外殼材質/Shell material	不銹鋼、鋼、鋁、絕緣外殼stainless steel, Steel，Aluminum, insulation shell

【Print】【Close】

標準尺寸/Standard dimensions：L×W×H(mm)
L×W×H（mm）	285×115× 160	285×115×210	285×115×300	285×135×160	285×135×210	285×135×300
Un（V）	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)
800	3000	4000	5000	3600	4900	6100
1100	1950	2600	3200	2350	3150	3900
1200	1350	1800	2250	1650	2200	2750
1600	950	1260	1580	1150	1520	1900
2000	770	1020	1280	930	1250	1560
2400	340	450	560	410	550	680
3200	190	260	320	235	310	390
L×W×H（mm）	340×115× 210	340×115×255	340×115×350	340×135×210	340×135×225	340×135×350
Un（V）	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)	Cn(μF)
800	4700	5900	8200	5600	7100	10000
1100	3000	3800	5300	3700	4600	6400
1200	2100	2650	3650	2550	3200	4400
1600	1480	1850	2600	1800	2250	3100
2000	950	1180	1650	1150	1450	2000
2400	530	640	920	640	800	1140
3200	300	370	530	360	450	650
