DTH
Current Position: DTH
DTH

Widely used in H-HV snubber, high current and high voltage application.

Dielectric: Polypropylene film

Construction: Metalized film internal series connection

Coating: Polyester tape wrapping with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut leads, threaded insert M5,M6 or M8 High current, high voltage

Low losses, high stability

Self healing


  • Performance
  • Shape and size

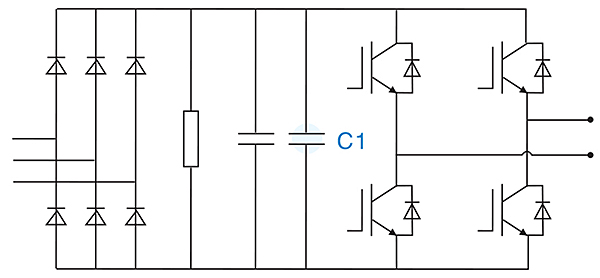

  • Typical circuit diagram
  • Waveforms

Reference standards

IEC 61071 61881

工作溫度范圍Operating temperature range

-40~85

容量范圍Capacitance

0.33~3.0μF

額定電壓 Rated Voltage

4000~25000VDC

容量偏差 Tolerance

±5%, ±10%

極間耐電壓 Test voltage between terminals

1.5Ur(DC) 10s  25±5

極殼耐電壓 Test voltage between terminals and case

3000V 50Hz 60S, 25±5

損耗角正切Dissipation factor

tgδ≤8×10-4 at  25±5, 1KHz

絕緣電阻Insulation resistance

C*IR30000S,   at  100VDC,25±5,60S

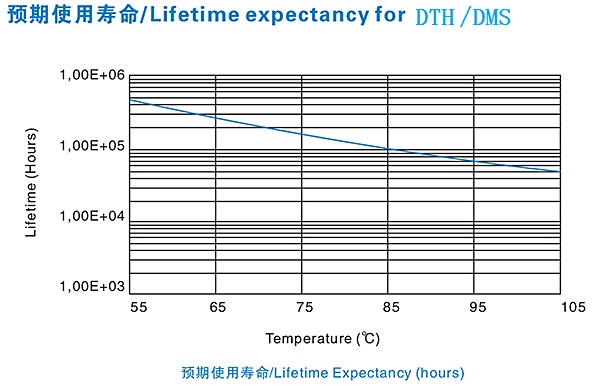

預期壽命Life expectancy

100000h at Ur and 70
