DTR
Current Position: DTR
DTR
It is widely used in series and parallel resonant circuits of various intermediate frequency, ultra audio frequency induction heating power supplies and other electronic equipment.

Dielectric: polypropylene film

Structure: double-sided metallization and metallization film inner string structure

Package: flame retardant Mylar tape, flame retardant (94V-0) epoxy package

Lead out: lead out with tinned copper nut or sheet

High ripple current

High stability and low loss

Self healing

See attachment for product specifications




New English web add:

http://www.dawncap.cn(English)

http://www.dawncapacitors.com
[email protected]



  • Performance

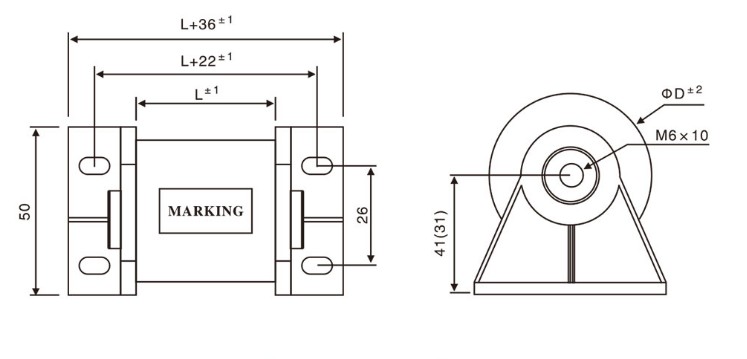

  • Shape and size

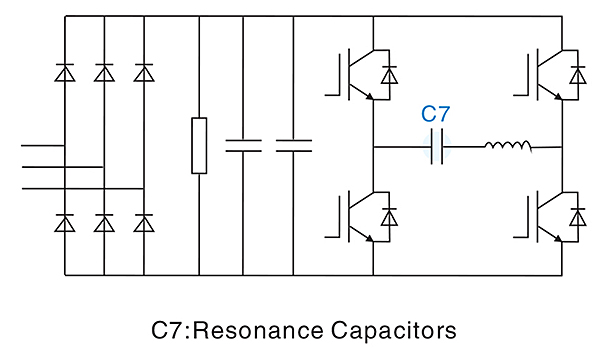

  • Typical circuit diagram
  • Waveforms

技術性能/Specifications

引用標準/Reference standards

IEC 61071 60068

工作溫度范圍/Operating temperature range

-40~85

容量范圍/Capacitance

0.1~4μF

額定電壓 /Rated Voltage

3000-3600V.DC

容量偏差 /Tolerance

±5% 10%

極間耐電壓 /Test voltage between terminals

1.5Ur(DC) 10s  25±5

極殼耐電壓 /Test voltage between terminals and case

3000V 50Hz 60S, 25±5

損耗角正切/Dissipation factor

tgδ≤6×10-4 at 25±5, 1KHz

絕緣電阻/Insulation resistance

C*IR30000S,   at  100VDC,25±5,60S

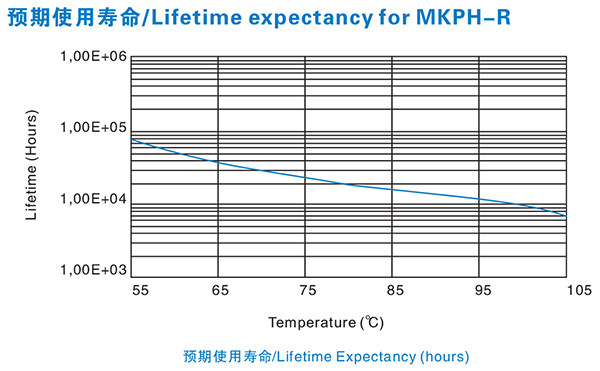

預期壽命/Life expectancy

100000h at Ur and 70
