DAC
Current Position: DAC
DAC

Windy used in for power electronic equipment, AC filter applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film, dry construction

Coating: Aluminium case with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut or screw leads

High currenthigh capacitance

low losseslow inductance

Self healing


  • Performance

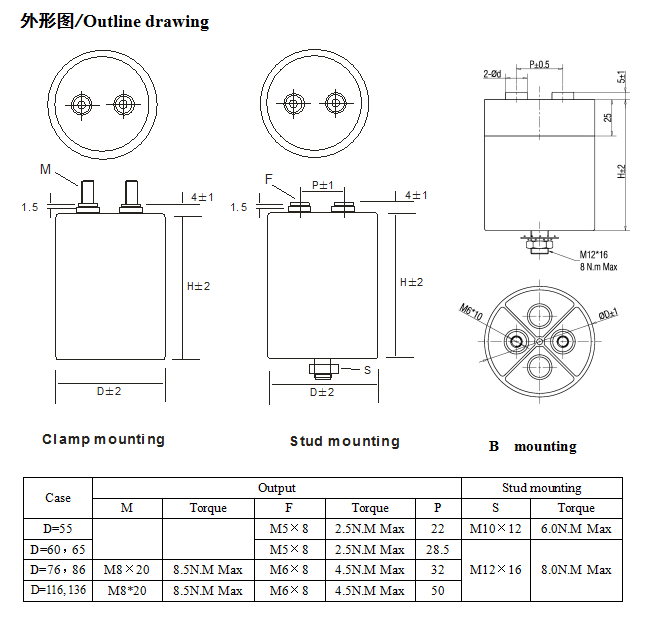

  • Shape and size
  • Typical circuit diagram
  • Waveforms

技術性能/Specifications

引用標準Reference standard

I EC 61071,60068 GB/T14747

工作溫度范圍Operating temperature range

-40~85

容量范圍Capacitance

8.0~350μF

額定電壓 Rated Voltage

250~450Vac (400~850Vdc)

容量偏差 Tolerance

±5%, ±10%

極間耐電壓 Test voltage between terminals

2.0Un 10s  25±5

極殼耐電壓 Test voltage between terminals and case:

3000V 50Hz 60S, 25±5

耗角正切Dissipation factor

: tgδ≤2×10-3 at  25±5, 100Hz

絕緣電阻Insulation resistance

C*IR5000S,   at  100VDC,25±5,60S

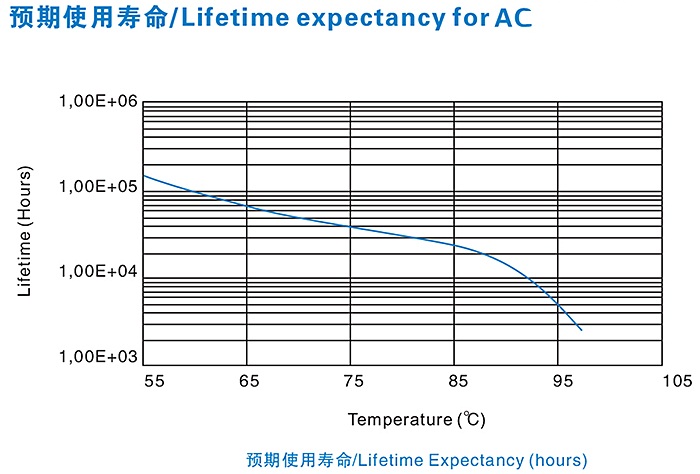

預期壽命Life expectancy

100000h at Un and 70℃,
