DCD

Current Position： DCD

DCD

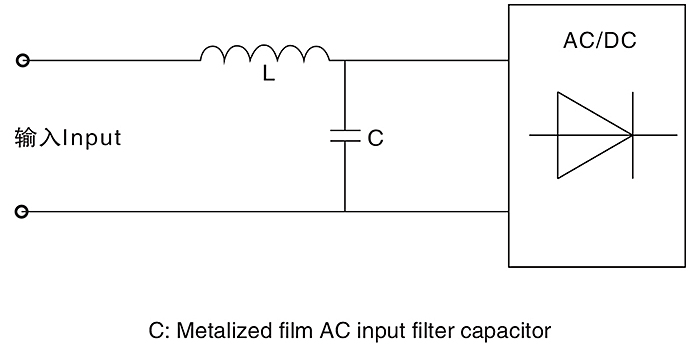

Input and output filtering in UPS，SMPSs, inverter, welding machine power, high frequency ,

high ripple current applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film, dry construction

Coating: Polyester tape wrapping with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut or lugs leads

Heavy ripple current

High stability, low losses

Self healing

技術性能/Specifications

引用標準/Reference standard	IEC 61071 60068 60384
工作溫度范圍/Operating temperature range	-40~85℃
容量范圍/Capacitance	0.5~12μF
額定電壓/ Rated Voltage	400~700Vac
容量偏差/ Tolerance	±5%, ±10%
極間耐電壓/ Test voltage between terminals	1.6Un 10s 25±5℃
極殼耐電壓 /Test voltage between terminals and case	3000V 50Hz 60S, 25±5℃
損耗角正切/Dissipation factor	tgδ≤1×10^-3 at 25±5℃ , 1KHz
絕緣電阻/Insulation resistance	C*IR≥5000S, at 100VDC,25±5℃,60S

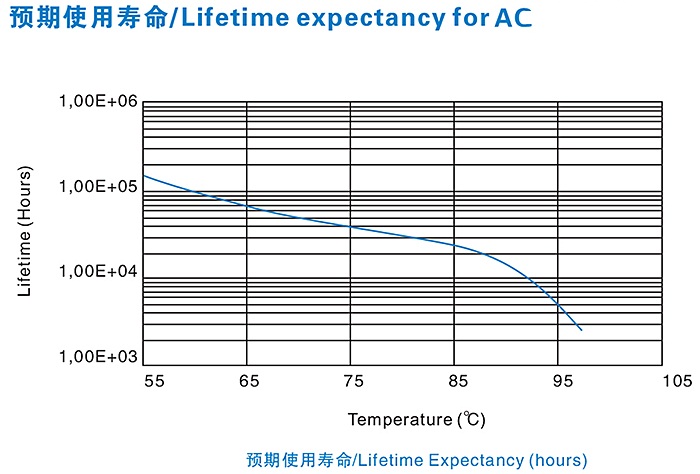

預期壽命/Life expectancy

【Print】【Close】
