DAF
Current Position: DAF
DAF

Windy used in for power electronic equipment

AC filter applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film,

dry construction

Coating: Aluminium case with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut or screw leads

High current,high capacitance

low losses,low inductance

Self healing


  • Performance
  • Shape and size

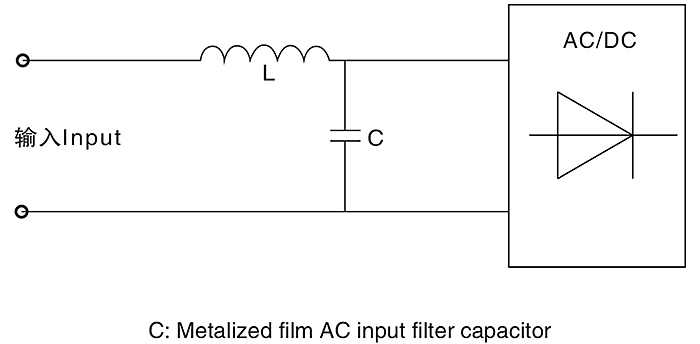

  • Typical circuit diagram
  • Waveforms

技術性能/Specifications

引用標準/Reference standard

IEC 61071, 60068 GB/T14747

工作溫度范圍/Operating temperature range

-40~85℃

容量范圍/Capacitance

3×20~3×500μF

額定電壓 /Rated Voltage

400~1000Vac

容量偏差 /Tolerance

±5%, ±10%

極間耐電壓 /Test voltage between terminals

1.5Un 10s  25±5℃

極殼耐電壓/ Test voltage between terminals and case

3000V 50Hz 60S, 25±5℃

損耗角正切/Dissipation factor

tgδ≤2×10-3 at  25±5℃ , 100Hz

絕緣電阻/Insulation resistance

Rs≥5000S,   at  100VDC,25±5℃,60S

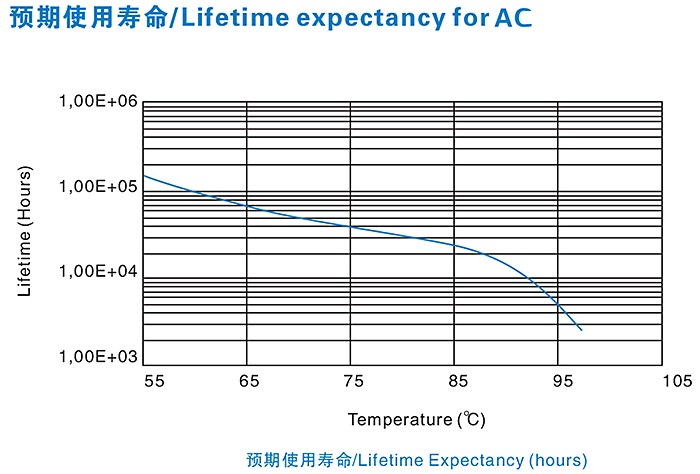

預期壽命/Life expextancy

100000h at Un and 70℃,30000h at Urms
