DLA
Current Position: DLA
DLA

Input and output filtering in UPSSMPSs, inverter, welding machine power, high frequency ,

high ripple current applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film, dry construction

Coating: Polyester tape wrapping with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut or lugs leads

Heavy ripple current

High stability, low losses

Self healing


  • Performance

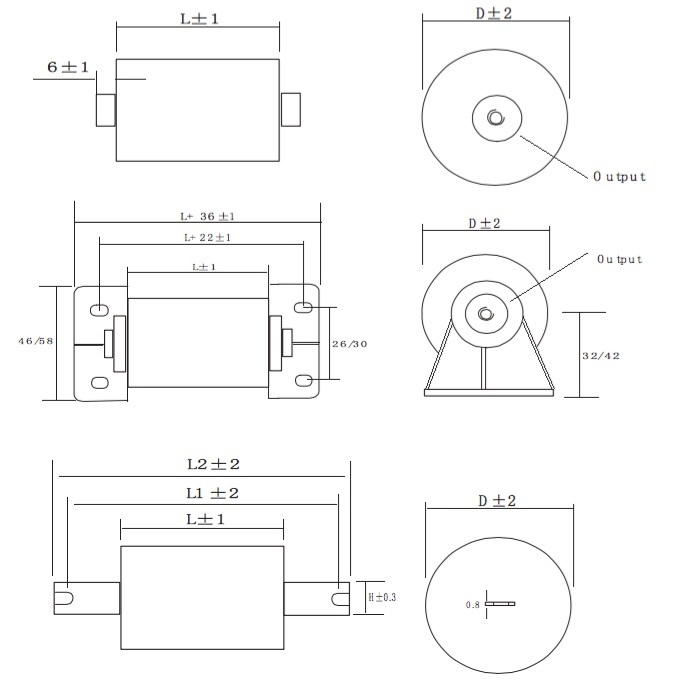

  • Shape and size

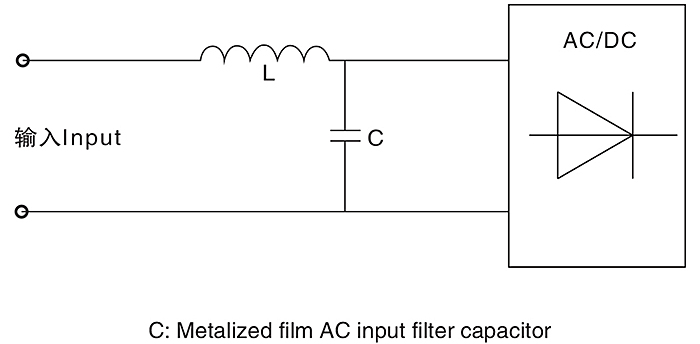

  • Typical circuit diagram
  • Waveforms

技術性能/Specifications

引用標準/Reference standard

IEC 61071 60068 60384

工作溫度范圍/Operating temperature range

-40~85

容量范圍/Capacitance

5.0~200μF

額定電壓/ Rated Voltage

400,800,1000Vdc (250,400,500Vac)

容量偏差/ Tolerance

±5%, ±10%

極間耐電壓/ Test voltage between terminals

1.6Un 10s  25±5

極殼耐電壓 /Test voltage between terminals and case

3000V 50Hz 60S, 25±5

損耗角正切/Dissipation factor

tgδ≤1×10-3 at  25±5, 1KHz

絕緣電阻/Insulation resistance

C*IR5000S,   at  100VDC,25±5,60S

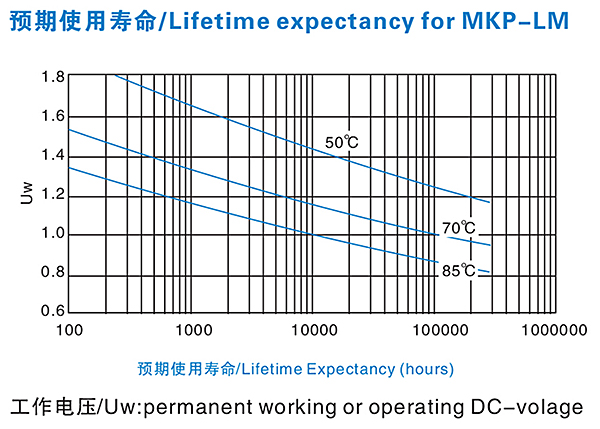

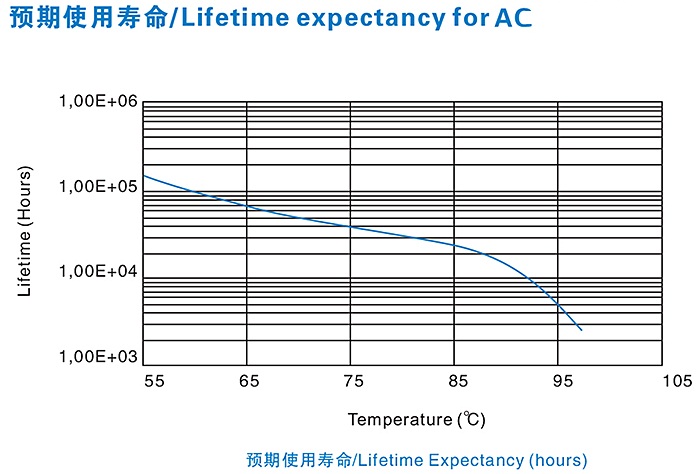

預期壽命/Life expectancy

100000h at Un  and 70
